M1134/M1253? Stryker

Anti-Tank Guided Missile Vehicle


Specifications

Country of Origin/Used by: USA
First Produced/Service Dates: 2003?
Crew: 4
Armament: (1) Elevated Twin TOW Anti-Tank Guided Missile System (12 Missiles Available) and (1) M240B 7.62mm Machine Gun
Miscellaneous Info: The M1134 Anti-Tank Guided Missile Vehicle (ATV) is an anti-tank and assault variant in the Stryker Series. Over its lifespan, the ATV has been upgraded with improvements to armor and automotive components a number of times.  The ATV is one of the vehicles that has been fitted with the new Double-V Hull (DVH) to protect against Improvised Explosive Devices (IED's).  The vehicles fitted with the DVH are referred to as the M1253? ATVV and the vehicles with added enhancements as outlined in the Engineering Proposal Change (ECP), the M1253? ATVV-A1.

To view the specifications and references common to ALL variants, please refer to the Stryker Interim Vehicle (IAV) Series Index.
Data Sheet Available:   None Available

Photos

Reference Source/Provider
M1134 Stryker ATGM Vehicle Photos Neil Baumgardner - Arlington, Virginia US

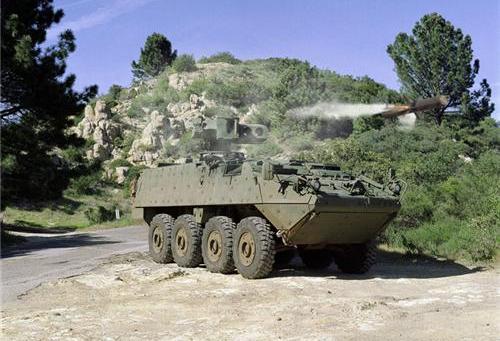

  M1134 Styker ATGM Vehicle Photo (Above) General Dynamics Land Systems

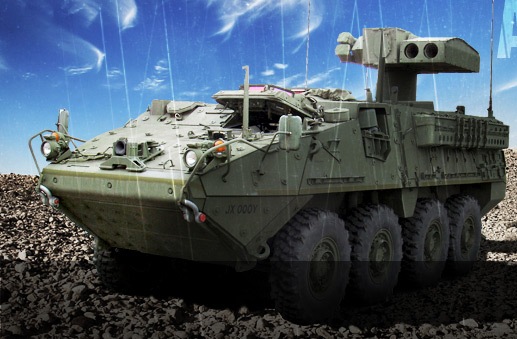

M1134 Stryker ATGM Vehicle Photo General Dynamics Land Systems - Canada
M1134 Stryker ATGM Vehicle Photos Robert Skipper

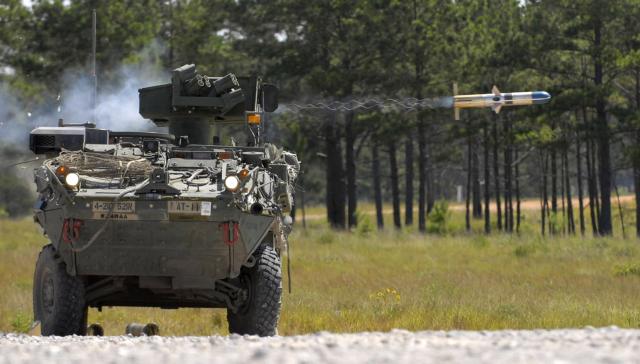

M1134 Stryker ATGM Vehicle Photos US Army

References Available

Online

Reference Source/Provider
M1134 Stryker ATGM Information & Photos Global Security.org
M1134 Stryker ATGM Photos (via Hans-Hermann Buhling) Prime Portal
M1134 Stryker ATGM Photos Tank-Masters.DE

Printed

Reference Author
Stryker In Detail - Part 2 (Wings and Wheels Publications  #19) Ralph Zwilling

Hobby Modeling

Kits and Accessories

Model Kit Manufacturer Scale Other Information
M1134 Stryker ATGM Vehicle Model Kit (35134)
  AFV Club 1/35 Injection molded plastic kit.
M1134 Stryker ATGM Vehicle Model Kit (399) Trumpeter 1/35 Injection molded plastic kit.

Aftermarket Set Manufacturer Scale Other Information
For products useable with all variants, see our Stryker IAV Series Index
M1134 ATGM Stryker Blast Shield (PEA255) Voyager Models 1/35 For AFV Club M1134 ATGM Stryker model kit.
USMC M1134 ATGM Stryker Detail Set :With Slat Armor (PE35421) Voyager Models 1/35 For AFV Club M1134 ATGM Stryker model kit.
M1134 ATGM Stryker Lens & Tail Light Set (BR35126) Voyager Models 1/35 For AFV Club M1134 ATGM Stryker model kit.

Model Photos

Reference Source/Provider


For More Information, go to our Stryker IAV Series Index
