M1113/M1114/M1116/M1145
HMMWV Expanded Capacity Vehicle (ECV)
Specifications
First Produced/Service Dates: | 1995 |
Manufactured by: | Chassis/Automotive: AM General, LLC.; Supplemental Armor: O'Gara-Hess & Eisenhardt |
Crew: | 2-4 |
Armament: | Depending On Variant. Various weapons/mounts can be fitted, including Remote Weapons Systems (RWS). Weapons include the 5.56mm M249 SAW Machine Gun, 7.62mm M60 MG, 7.62mm M240 MG, M2HB .50 Cal Heavy MG and 40mm Mod 3 MK 19 Automatic Grenade Launcher. |
Engine: | 8 Cylinder Turbo-Diesel |
Miscellaneous Info: | The Expanded Capacity Vehicle (ECV) series was built with a number of improvements to increase mobility and performance over the earlier HMMWV's. The most substantial improvements were a heavier chassis and suspension, uprated brakes, new cooling, exhaust and steering systems and a more powerful turbo-diesel engine. The vehicles in the ECV family are the 2-Door M1113 Cargo/Troop/Shelter Carrier, 4-Door M1114 Uparmored Armament Carrier, US Air Force's M1116 Uparmored Base Security/Personnel Carrier and M1145 Uparmored Forward Air Control Vehicle. There are also references to an M1115 Uparmored TOW Missile Carrier, but we have not found any evidence it was ever produced. |
Data Sheet Available: | None Available |
Photos
Reference | Source/Provider |
M1113 ECV Shelter Carrier Photos | John Charvat - Yukon, Oklahoma USA |
M1113 ECV SECM Shelter and FRAG 2 Armor Kit) Photos | Keith Ross - Oklahoma USA |
IDF M1113 ECV "Rakoun" Survelliance/Reconnaissance Vehicle Photos | Robert Goldman - Kfar Saba, Israel |
M1114 ECV Uparmored Armament Carrier Photos | AM General, LLC |
M1114 Uparmored ECV Armament Carrier Photos | SSGT Mike Belue - Iraq |
M1114 Uparmored ECV Armament Carrier Photos | John Charvat |
M1114 Uparmored ECV Armament Carrier Photos | Brent Sauer - Editor of HMMWV In Scale |
M1114 Uparmored ECV Armament Carrier Photo (2008-New York National Guard's 27th Infantry Brigade Combat Team) | US Army via LTC Paul Fanning (Ret.) |
M1114 Uparmored ECV HMMWV & M1240 M-ATV Photo | U.S. Department of Defense |

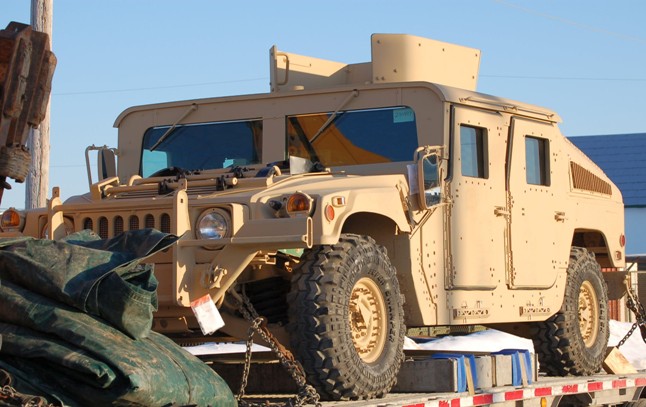

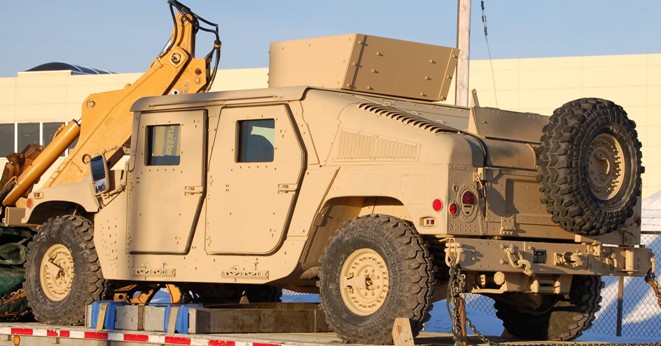

Canadian M1114 Uparmored ECV Armament Carrier Photos (Joint Task Force 2 Special Forces) | Anonymous WarWheels Supporter |
M1114 Uparmored ECV Armament Carrier Photos (Israeil Defense Forces) | Robert Goldman |
M1116 Uparmored ECV Base Security/Personnel Carrier Photos (US Air Force) | John Charvat |
